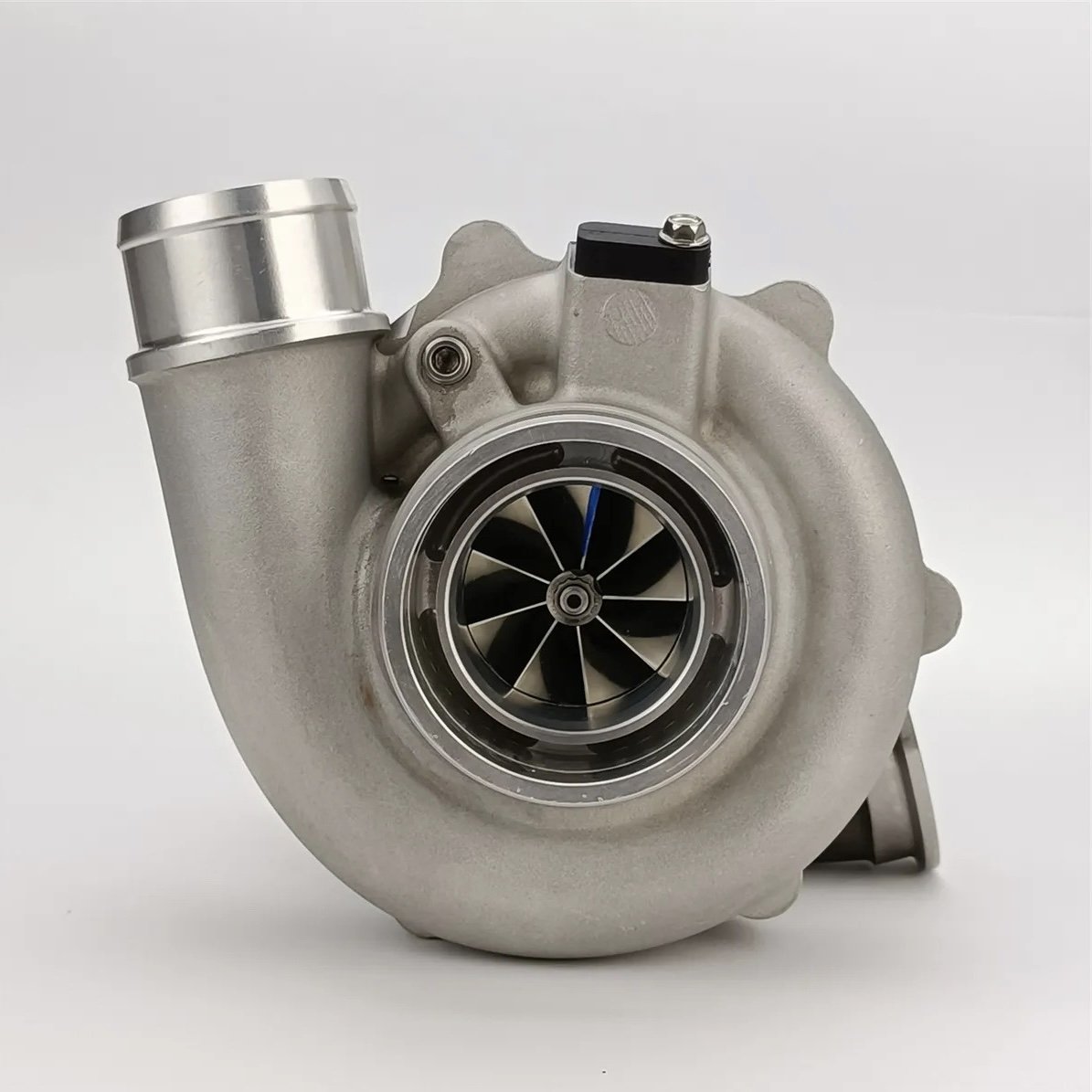

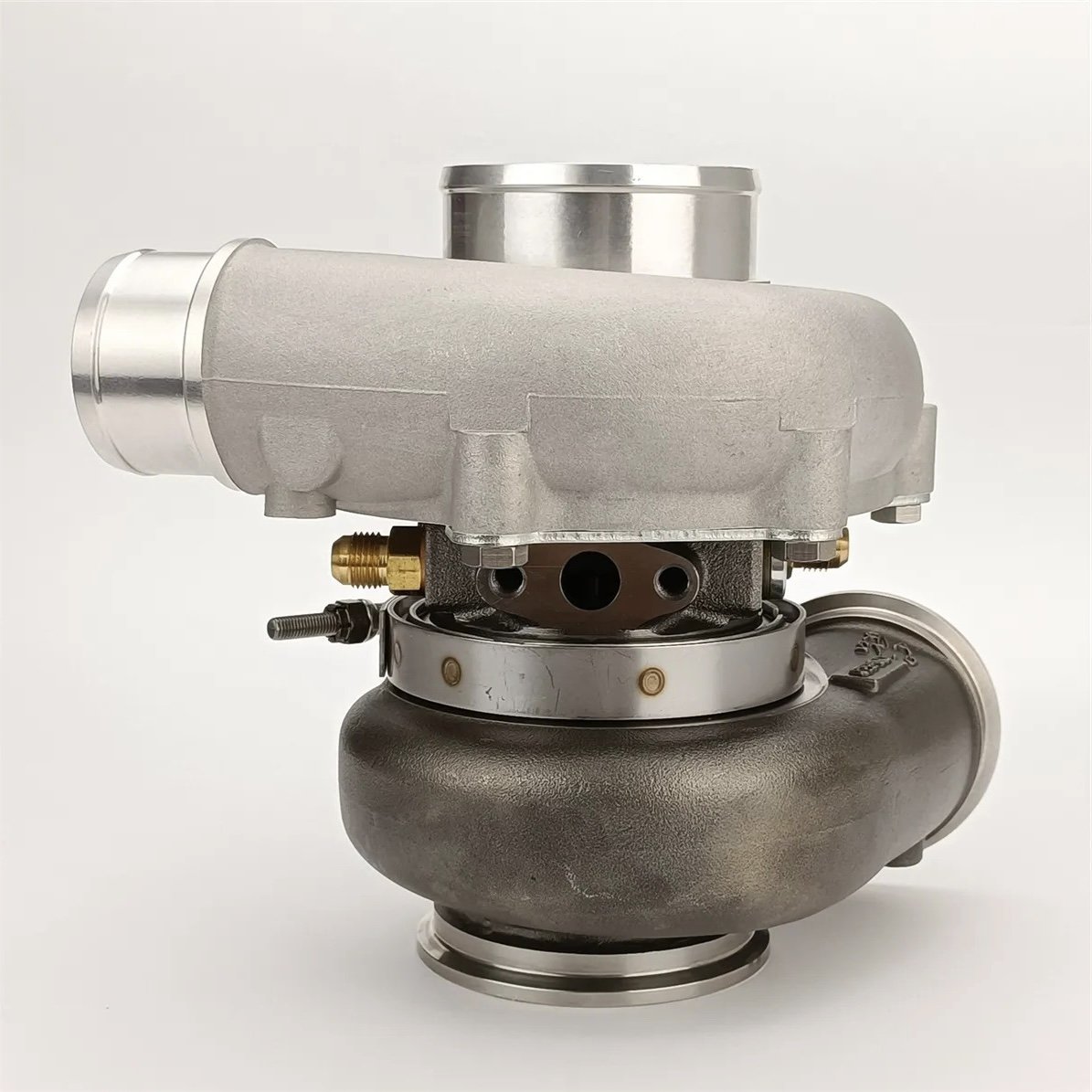

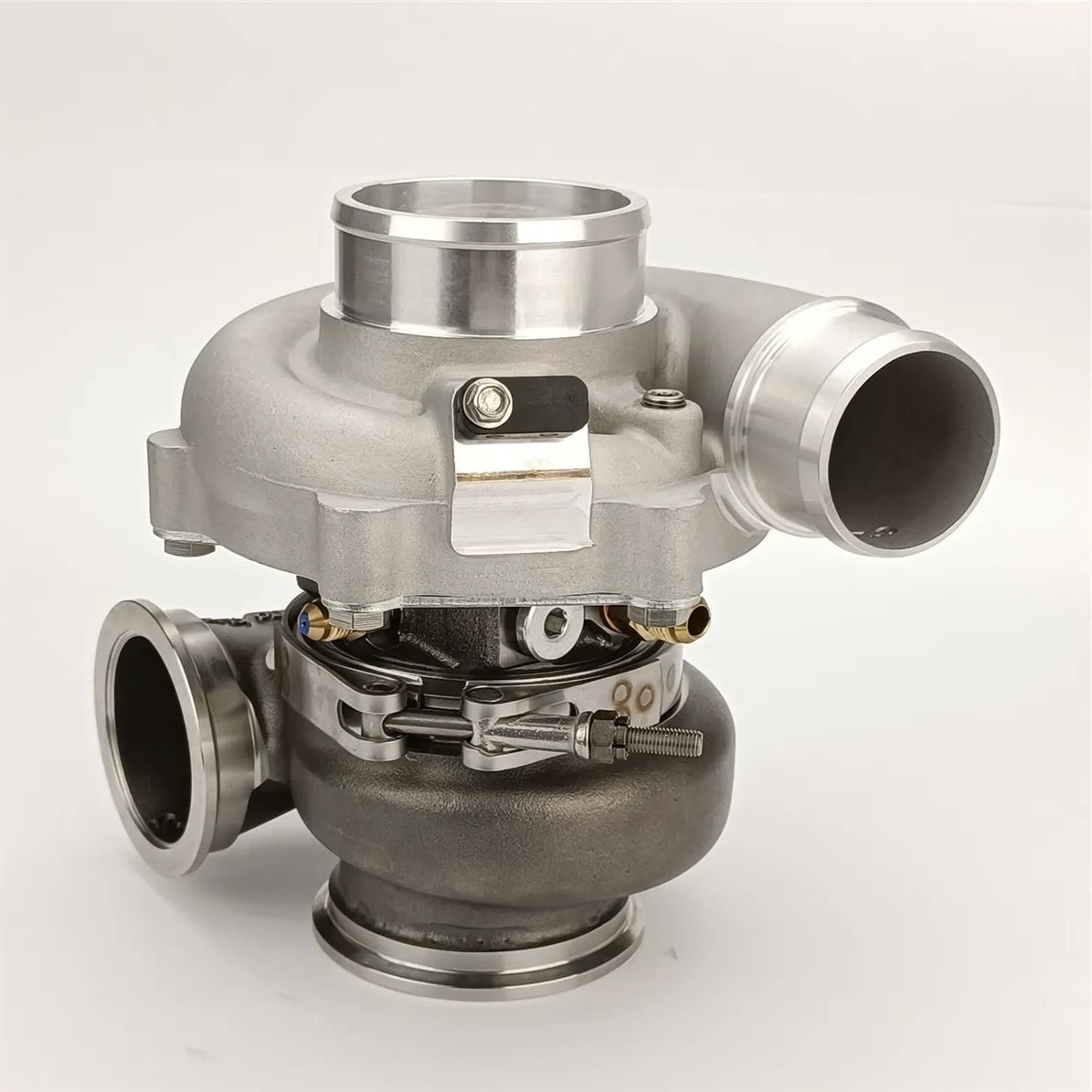

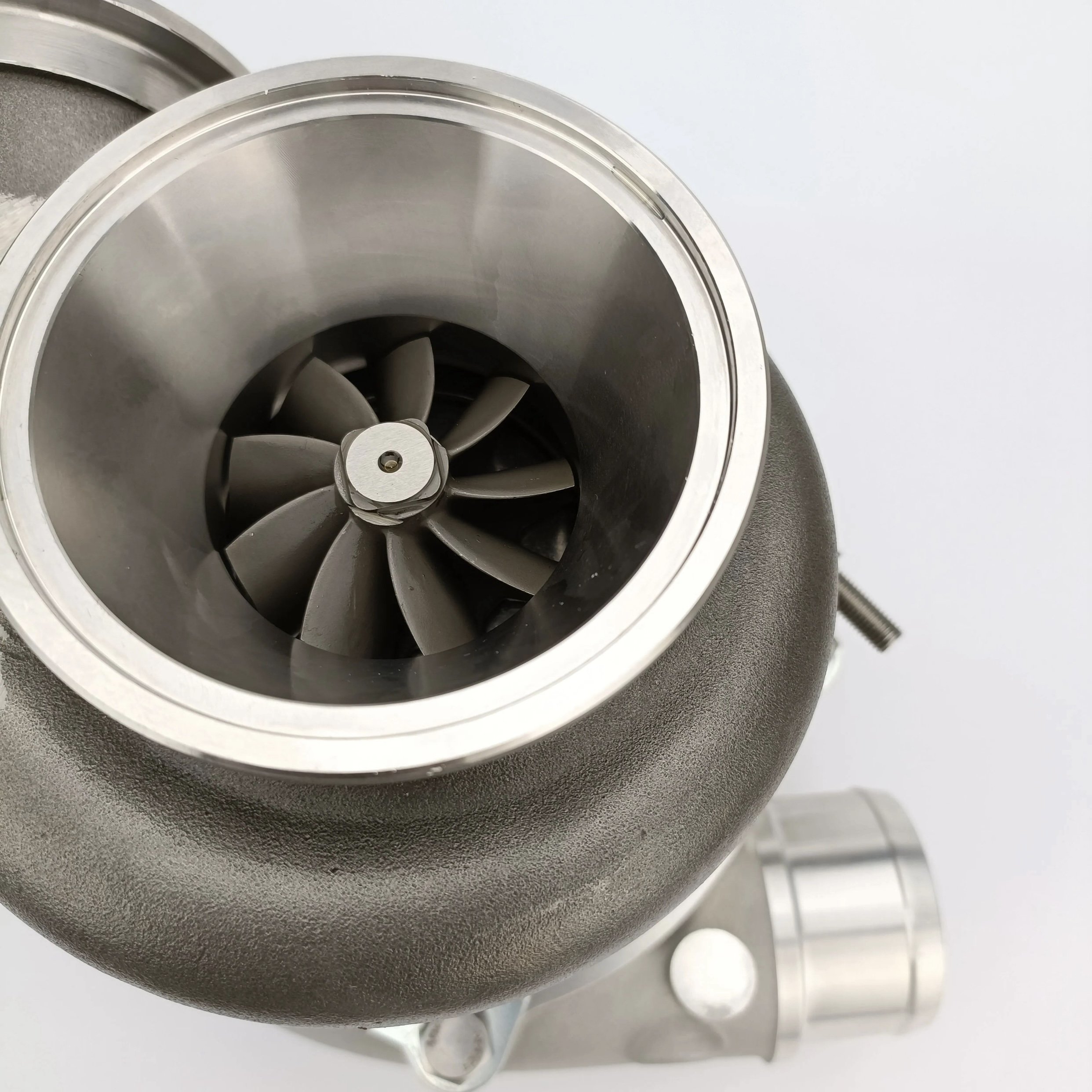

60FT R25-550 Turbocharger

Specifications:

• Compact Design, Massive Power: The 60Ft™ R25-550 Turbocharger is designed to pack a punch in a small package. Capable of supporting up to 550 horsepower, it’s the ideal choice for high-performance builds that require a compact yet potent turbo solution.

• Optimized Aerodynamics: Experience faster spool times and enhanced airflow with the 60Ft™ R25-550 Turbocharger. Engineered with cutting-edge aerodynamics, this turbo ensures reduced lag and a smooth, consistent power delivery that keeps you ahead of the competition.

• Versatile Fitment Options: The 60Ft™ R25-550 Turbocharger is available with multiple turbine housing options, providing versatility for a wide range of vehicles and custom setups. Whether you're upgrading a daily driver or building a dedicated race car, this turbocharger delivers the flexibility you need.

Cooling Type:

• Water-Cooled

Compressor Details:

• A/R: 0.70 (Anti-Surge)

• Air Inlet: 3"

• Air Outlet: 2"

• Inducer Diameter: 48.00 mm

• Exducer Diameter: 60.00 mm

• Compressor Trim: 65

Turbine Details:

• A/R: 0.72

• Turbine Housing Inlet: 3 Inch (76.20 mm) O.D. with 60 mm Centering Ring V-Band

• Turbine Housing Outlet: 3.55 Inch (90 mm) O.D. with 81 mm Centering Ring V-Band

• Inducer Diameter: 54.00 mm

• Exducer Diameter: 49.00 mm

• Turbine Trim: 84

**Sixty Foot Fabrication Important Product Information:**

Sixty Foot Fabrication Performance Parts are professional aftermarket products designed exclusively for certain racing vehicles driven on designated racing tracks. These products are intended solely for use on racing vehicles that will not be driven on public roads or highways. Sixty Foot Fabrication Performance Parts are not legal for use in vehicles operated on public roads or any other roadways where public road laws apply. Any vehicle modifications using Sixty Foot Fabrication Performance Parts are undertaken AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK.

Only use Sixty Foot Fabrication Performance Parts in compliance with all applicable laws, regulations, and ordinances, including but not limited to those related to emissions, noise, operating licenses, performance, safety, and type-approval requirements. Vehicle modifications made with Sixty Foot Fabrication Performance Parts may particularly affect or void your vehicle’s warranty, operating license, or type-approval.

Additionally, only use Sixty Foot Fabrication Performance Parts in accordance with all relevant racing regulations and provisions governing the use of vehicles on racing tracks. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Sixty Foot Fabrication Performance Part is suitable for your vehicle and its intended application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ALL TIMES.

We strongly recommend consulting your vehicle’s owner’s manual and service manual, and contacting your vehicle’s manufacturer to determine the potential effects of modifications on key aspects such as safety, warranty, and performance. Only install and use Sixty Foot Fabrication Performance Parts if you have thoroughly read and understood this important safety information and fully agree to the terms and conditions stated herein.
